Features & Application
． Metallization on Alloy core results in excellent shock resistance
and damage-free durability.
．Closed magnetic circuit design reduces leakage flux and Electro Magnetic
． Fe base metal material core provides large saturation current.
．Automatic production ensures high quality and consistency.
Notebooks,desktop computers,servers,graphic cards
Blue -ray disc recorders, set top box , Automotive systems.
Portable gaming devices, personal navigation systems, personal multimedia devices
Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
“Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /85% relative humidity)
85% relative humidity)”
1. Isat: DC current at which the inductance drops approximate 30% from its value without current;
2. Irms: DC current that causes the temperature rise (△T =40°C ) from 25°C ambient;
3. Operating Temperature : -40℃ ~ +125℃;
4. Absolute maximum voltage: DC 25V
Impedance/Inductance/Q/ LCR Angilent E4991A
Resistance DC Chroma 16502
Current per winding that causes a 20°C rise from 25°C ambient
Electrical specifications at 25°C

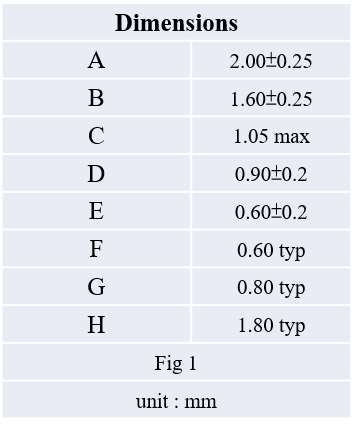

Weight 12 – 17 mg
Packaging 2000/7″ reel; Plastic tape: 8 mm wide.
Packaging will different,accroding the various chip size.
1. Operating temperature range: -40 TO + 125℃(Includes temperature when the coil is heated)
2. External appearance: On visual inspection, the coil has no external defects.
3. Terminal strength: After soldering. Between copper plate and terminals of coil. Push in two directions of X.Ywithstanding at below conditions.
Terminal should not peel off. (refer to figure at right) 0.5kg Min –201610
4. Insulating resistance: Over 100MΩ at 100V D.C. between coil and core
5. Dielectric strength: No dielectric breakdown at 100V D.C. for 1 minute between coil and core
6. Temperature characteristics: Inductance coefficient (0~2,000)x10-6/ ( ℃ -25~+80 ). ℃ , inductance deviation within±5.0%, after 96 hours.
7. Humidity characteristics(Moisture Resistance): Inductance deviation within ±5%, after 96 hours in 90~95% relative humidity at 40 ±2 and 1 hour drying under normal condition.
8. Vibration resistance: Inductance deviation within ±5%, after vibration for 1 hour. In each of three orientations at sweep vibration (10~55~10 Hz) with 1.5mm P-P amplitudes.
9. Shock resistance: Inductance deviation within ±5%, after being dropped once with 981m/s2 (100G) shock attitude upon a rubber block method shock testing machine, in three different orientations.
10. Resistance to Soldering Heat: 260 , 10 seconds(See attached recommend reflow)
11. Storage environment: Storage condition: Temperature Range: 10 ~ 35 (Generally: 21 ~ 31 ) , Humidity Range: 50% ~ 80% RH (Generally: 65% ~ 75%) ; Transportation condition: Temperature Range:-35 ~ 85 , Humidity Range: 50% ~ 95% RH
12. Use components within 12 months. If 12 months or more have elapsed, check soldarability before use.
13. Reflow profile recommend:
Lead-free heat en duran ce test
Lead-free the recommended reflow condition

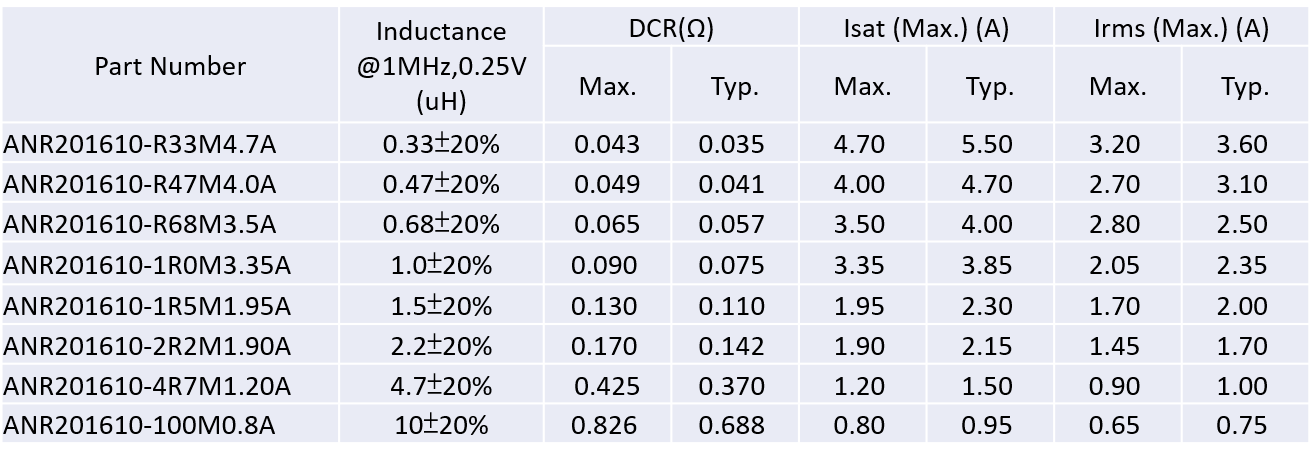

ANR201610-R33M4.7A, ANR201610-R47M4.0A, ANR201610-R68M3.5A, ANR201610-1R0M3.35A, ANR201610-1R5M1.95A, ANR201610-2R2M1.90A, ANR201610-4R7M1.20A, ANR201610-100M0.8A
★ When ordering, please check part number
