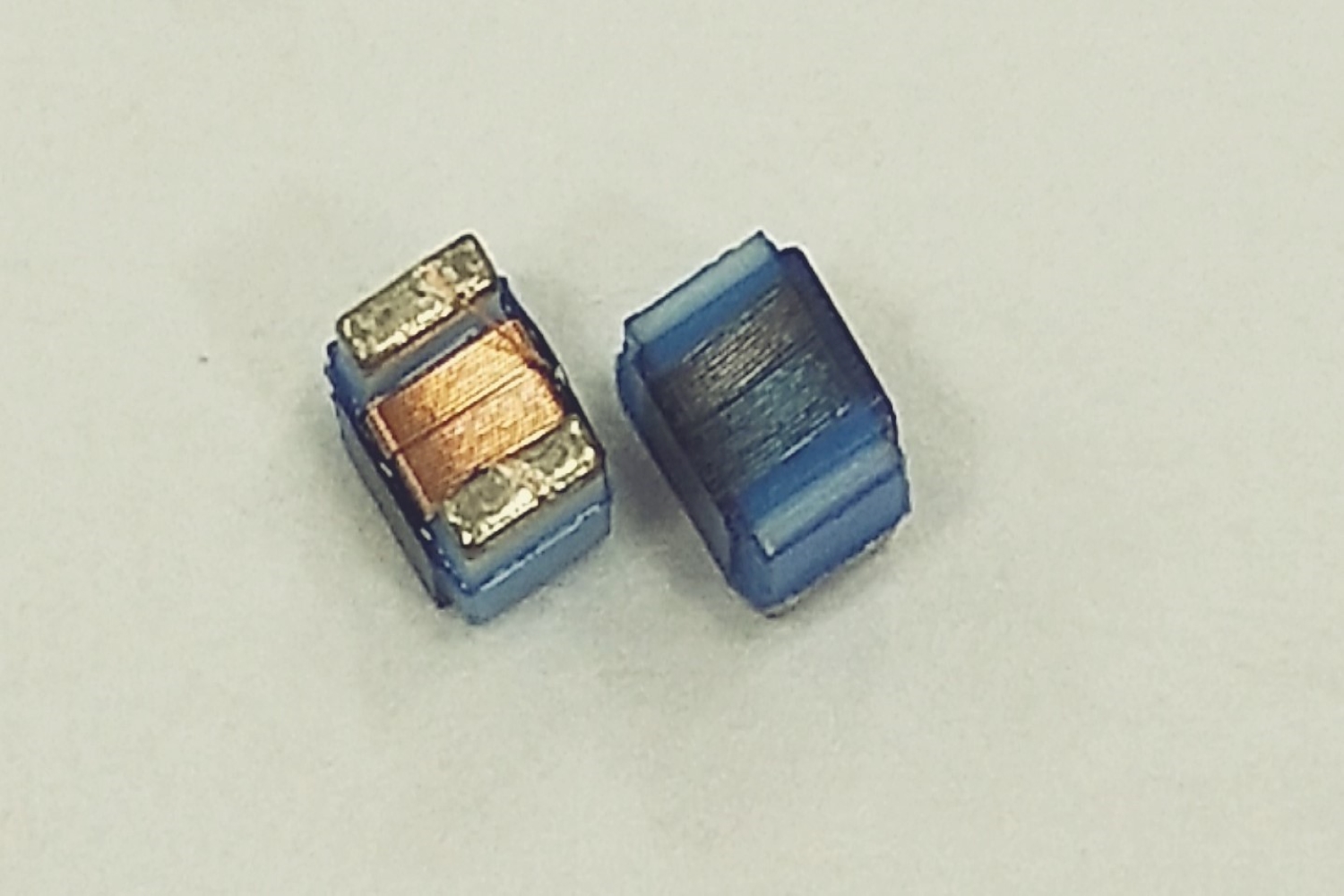

SCI1005S-Series

NT$1.50

清除
貨號: 不提供 分類:

描述

Features & Application
• Higher Q and lower DCR than other 0402 inductors
“• Very high SRF values – as high as 12 GHz”
• Excellent current handling capability – up to 2300 mA
• 50 inductance values from 1.0 to 120 nH
Core material Ceramic
Environmental RoHS compliant, halogen free
Terminations Silver-palladium-platinum-glass frit. Other terminations
available at additional cost.
Ambient temperature –40°C to +125°C with Irms current
Maximum part temperature +140°C (ambient + temp rise).
Storage temperature Component: –40°C to +140°C. Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL) +25 to +125 ppm/°C
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

Impedance/Inductance/Q/ LCR Angilent E4991A
Resistance DC Chroma 16502
Current per winding that causes a 20°C rise from 25°C ambient

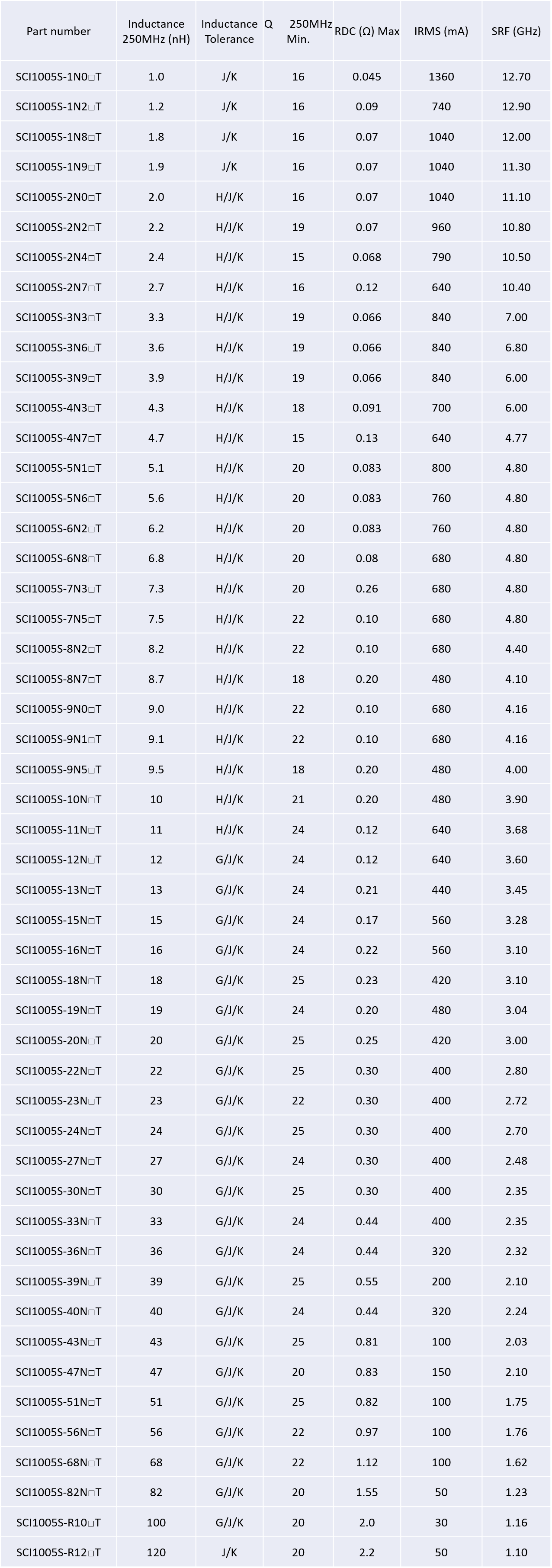

Electrical specifications at 25°C

Weight 0.6 – 1.2 mg.
Packaging 2000/7″ reel; Plastic tape: 8 mm wide.
Packaging will different,accroding the various chip size.

GENERAL CHARACTERISTICS
1. Operating temperature range: -40 TO + 125℃(Includes temperature when the coil is heated)
2. External appearance: On visual inspection, the coil has no external defects.
3. Terminal strength: After soldering. Between copper plate and terminals of coil. Push in two directions of X.Ywithstanding at below conditions.

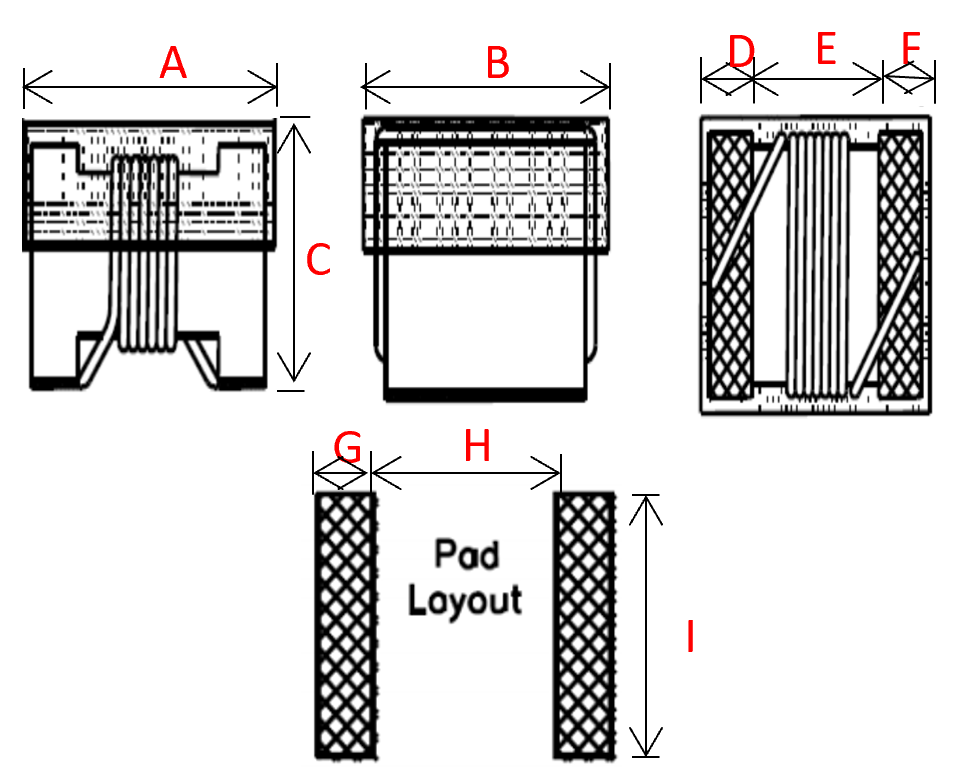

Terminal should not peel off. (refer to figure at right) 0.5kg Min –1005
4. Insulating resistance: Over 100MΩ at 100V D.C. between coil and core
5. Dielectric strength: No dielectric breakdown at 100V D.C. for 1 minute between coil and core
6. Temperature characteristics: Inductance coefficient (0~2,000)x10-6/ ( ℃ -25~+80 ). ℃ , inductance deviation within±5.0%, after 96 hours.
7. Humidity characteristics(Moisture Resistance): Inductance deviation within ±5%, after 96 hours in 90~95% relative humidity at 40 ±2 and 1 hour drying under normal condition.
8. Vibration resistance: Inductance deviation within ±5%, after vibration for 1 hour. In each of three orientations at sweep vibration (10~55~10 Hz) with 1.5mm P-P amplitudes.
9. Shock resistance: Inductance deviation within ±5%, after being dropped once with 981m/s2 (100G) shock attitude upon a rubber block method shock testing machine, in three different orientations.
10. Resistance to Soldering Heat: 260 , 10 seconds(See attached recommend reflow)
11. Storage environment: Storage condition: Temperature Range: 10 ~ 35 (Generally: 21 ~ 31 ) , Humidity Range: 50% ~ 80% RH (Generally: 65% ~ 75%) ; Transportation condition: Temperature Range:-35 ~ 85 , Humidity Range: 50% ~ 95% RH
12. Use components within 12 months. If 12 months or more have elapsed, check soldarability before use.
13. Reflow profile recommend:
Lead-free heat en duran ce test

Lead-free the recommended reflow condition

額外資訊

型號

SCI1005S-1N0KT, SCI1005S-1N2KT, SCI1005S-1N8KT, SCI1005S-1N9KT, SCI1005S-2N0KT, SCI1005S-2N2KT, SCI1005S-2N4KT, SCI1005S-2N7KT, SCI1005S-3N3KT, SCI1005S-3N6KT, SCI1005S-3N9KT, SCI1005S-4N3KT, SCI1005S-4N7KT, SCI1005S-5N1KT, SCI1005S-5N6KT, SCI1005S-6N2KT, SCI1005S-6N8KT, SCI1005S-7N3KT, SCI1005S-7N5KT, SCI1005S-8N2KT, SCI1005S-8N7KT, SCI1005S-9N0KT, SCI1005S-9N1KT, SCI1005S-9N5KT, SCI1005S-10NKT, SCI1005S-11NKT, SCI1005S-12NKT, SCI1005S-13NKT, SCI1005S-15NKT, SCI1005S-16NKT, SCI1005S-18NKT, SCI1005S-19NKT, SCI1005S-20NKT, SCI1005S-22NKT, SCI1005S-23NKT, SCI1005S-24NKT, SCI1005S-27NKT, SCI1005S-30NKT, SCI1005S-33NKT, SCI1005S-36NKT, SCI1005S-39NKT, SCI1005S-40NKT, SCI1005S-43NKT, SCI1005S-47NKT, SCI1005S-51NKT, SCI1005S-56NKT, SCI1005S-68NKT, SCI1005S-82NKT, SCI1005S-R10KT, SCI1005S-R12KT

型號

★ When ordering, please check part number

Isolation (Vrms) : 250V. Winding to winding isolation (hipot) tested for one minute.
