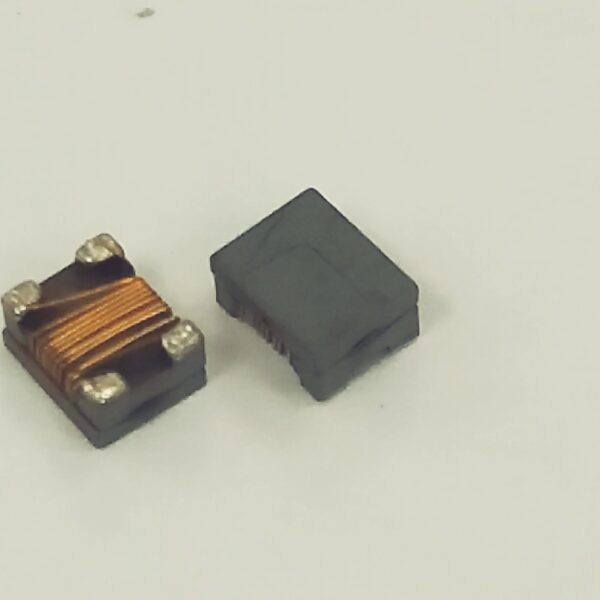

The BINGRI SMD common mode choke coil is also known as common mode inductor. The ferrite core with a double ferrule winding design has a very high initial magnetic permeability (μ), which has an excellent suppression effect on the interference; high magnetic induction intensity is not easily magnetized in the case of strong current interference. Saturation, excellent temperature stability, and changes in performance are close to linear. Effectively suppressing high common mode noise and low differential mode noise, stabilizing high-speed signal waveforms, and improving anti-jamming capability of electronic devices are the best countermeasures for noise suppression.
We provide the standard chip sizes of 2012, 3216, 3225 and 4532. The thicknesses are only 1.2 mm, 2.0 mm, 2.2 mm and 2.8 mm, making it an ultra-thin chip common mode inductor.
Electrical characteristics have a high differential mode cutoff frequency and attenuation of common mode noise over a wide range of frequencies, making it an ideal choice for suppression of ultra-high-speed signal line noise such as Display Port, DVI, USB 3x, and HDMI 2.0. Also suitable for high speed differential signal lines such as USB, IEEE1394, LVDS and compatible with USB type-C.
Orders can be customized upon request and inductors that exceed these specifications can also be produced. Compatible with TDK, Murata, Taiyo and Vishay common mode inductors. The product complies with RoHS, lead-free soldering technology, fully meeting customer needs and is environmentally friendly. For more detailed information, please contact our sales department.
